Beschrijving

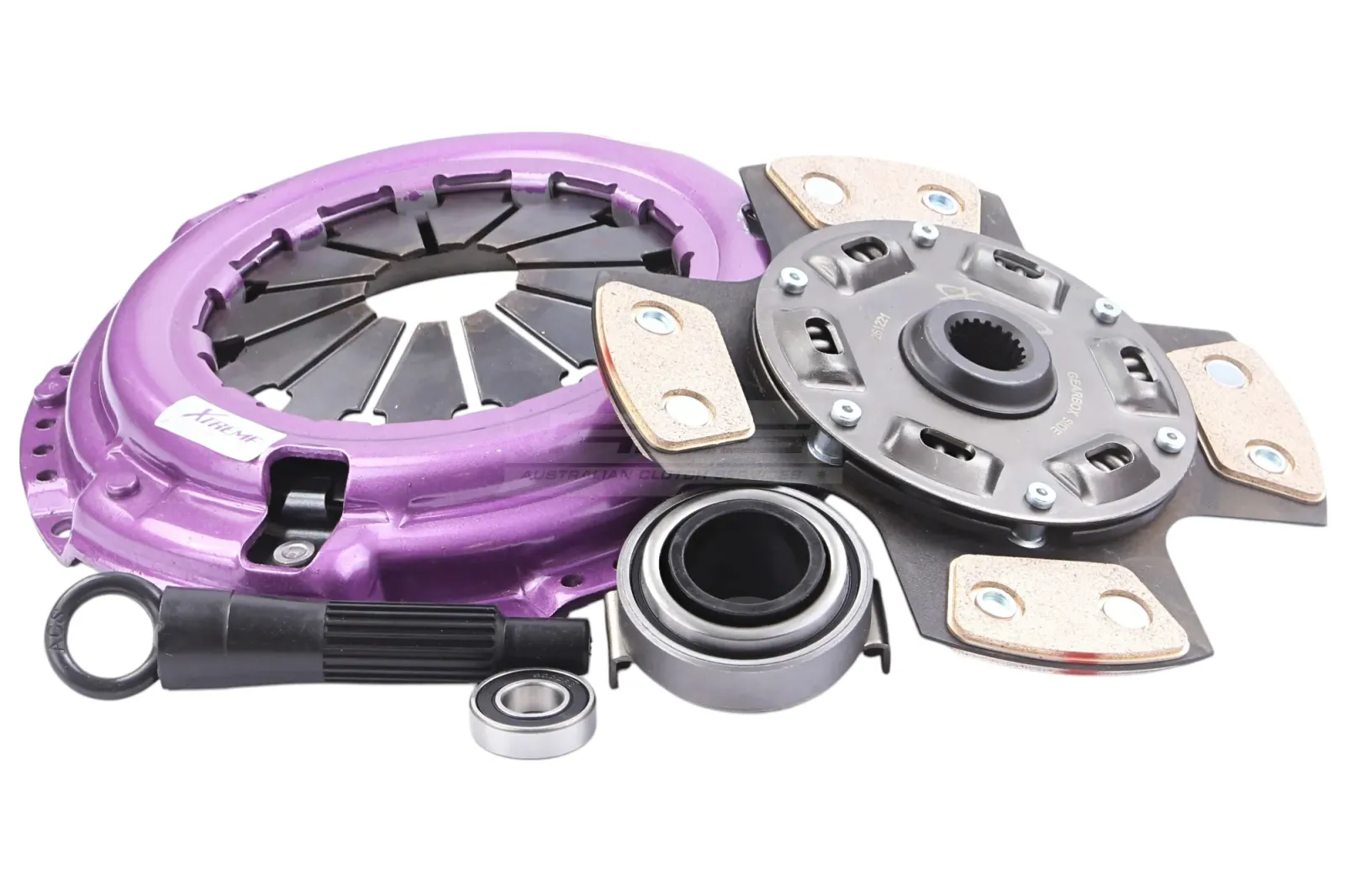

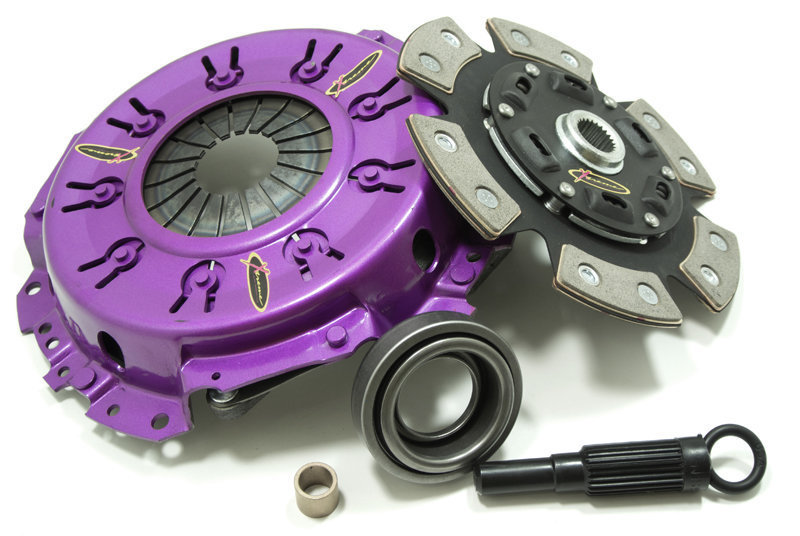

Xtreme Performance – sprung ceramic kit /-1B
Recommended for: Motorsport Applications
Clutch Disc Diameter (mm)
212
Clutch Disc Spline Count
20
Clutch Disc Spline Diameter (mm)
22
Torque (Nm)
410
Flywheel Step
-1.5mm/.060″”
Design
Single Plate
Stage
Stage 2
Tech Bulletins
Clamp Load
Recommended for
Track – Stage 2
Ring Gear Tooth count
Additional infotmation
Weight [KG]:
5.73
These
kits are available with sprung ceramic friction discs and are designed
for motorsport applications where higher heat and torque capacity is
required. These can also be used in some road applications.
Specifications:
- Torque capacity 410Nm
- Clamp load Increased over standard
- Sprung Ceramic Friction Disc
- Heavy Duty Pressure Plate
- Kit contains everything you need for a successful installation + accessories
| Make | Model | Year | Variant | Engine | Note | Details |
|---|---|---|---|---|---|---|
| Honda | CRX | 1992.03-1998.12 | Gen. III | 1.6 ESi (EH6) | D16Y8, D16Z6 1590 Petrol 92 kW 125 BHP (1992.03 – 1998.12) | ||
| Honda | Civic | 1987.11-1991.09 | Gen. IV | 1.6 16V 4×4 | D16A6 1590 Petrol 79 kW 107 BHP (1987.11 – 1991.09) | ||
| Honda | Civic | 1991.10-1993.10 | Gen. V | 1.6 (EH9) | D16Z6, D16Y1 1590 Petrol 96 kW 131 BHP (1991.10 – 1993.10) | ||
| Honda | Civic | 1991.10-1995.09 | Gen. V | 1.6 (EG2) | D16A9, D16Y1 1590 Petrol 96 kW 131 BHP (1991.10 – 1995.09) | ||
| Honda | Civic | 1991.10-1995.11 | Gen. V | 1.5 i 16V (EG4) | D15Z1, D15B2 1493 Petrol 69 kW 94 BHP (1991.10 – 1995.11) | ||
| Honda | Civic | 1991.10-1995.11 | Gen. V | 1.5 i 16V (EG4) | D15Z1, D15B2, D15B3, D15Z2, D15B4 1493 Petrol 66 kW 90 BHP (1991.10 – 1995.11) | Suits D15B4 engine. | |
| Honda | Civic | 1991.10-1995.11 | Gen. V | 1.5 i 16V (EG8) | D15Z1, D15B2 1493 Petrol 69 kW 94 BHP (1991.10 – 1995.11) | ||
| Honda | Civic | 1991.10-1995.11 | Gen. V | 1.6 16V Vtec (EG5, EH3) | D16Z6 1590 Petrol 92 kW 125 BHP (1991.10 – 1995.11) | ||
| Honda | Civic | 1991.10-1995.11 | Gen. V | 1.6 16V Vtec (EH9, EH5) | D16Z7, D16Z6 1590 Petrol 92 kW 125 BHP (1991.10 – 1995.11) | ||
| Honda | Civic | 1991.10-1995.12 | Gen. V | 1.5 i 16V (EG8) | D15B7, D15Z1, D15B2 1493 Petrol 74 kW 101 BHP (1991.10 – 1995.12) | ||
| Honda | Civic | 1992.01-1992.12 | Gen. V | 1.5 i 16V (EG8) | D15B2 1493 Petrol 61 kW 83 BHP (1992.01 – 1992.12) | ||
| Honda | Civic | 1992.01-1995.10 | Gen. V | 1.6 4×4 | D16Z7 1590 Petrol 92 kW 125 BHP (1992.01 – 1995.10) | ||
| Honda | Civic | 1993.08-1995.10 | Gen. V | 1.6 EX (EH9) | D16A7 1590 Petrol 88 kW 120 BHP (1993.08 – 1995.10) | ||
| Honda | Civic | 1993.08-1995.11 | Gen. V | 1.5 i LSi (EJ2) | D15B7 1493 Petrol 74 kW 101 BHP (1993.08 – 1995.11) | ||
| Honda | Civic | 1993.10-1995.12 | Gen. V | 1.5 | D15B2 1493 Petrol 66 kW 90 BHP (1993.10 – 1995.12) | ||
| Honda | Civic | 1993.10-1995.12 | Gen. V | 1.5 i 16V (EG8) | D15B7 1493 Petrol 67 kW 91 BHP (1993.10 – 1995.12) | ||
| Honda | Civic | 1994.01-1996.03 | Gen. V | 1.6 i Vtec (EJ1) | D16Z9, D16Y6 1590 Petrol 92 kW 125 BHP (1994.01 – 1996.03) | ||
| Honda | Civic | 1995.10-2001.03 | Gen. VI | 1.6 (MB1) | D16Y2 1590 Petrol 93 kW 126 BHP (1995.10 – 2001.03) | ||
| Honda | Civic | 1995.11-2001.02 | Gen. VI | 1.6 i Vtec (EK1) | D16Y8, D16Y6, D16Y5 1590 Petrol 92 kW 125 BHP (1995.11 – 2001.02) | ||
| Honda | Civic | 1996.03-2000.03 | Gen. VI | 1.6 i (EJ6) | D16Y7 1590 Petrol 77 kW 105 BHP (1996.03 – 2000.03) | ||
| Honda | Civic | 1996.03-2000.03 | Gen. VI | 1.6 i Vtec (EM1) | D16Y8 1590 Petrol 92 kW 125 BHP (1996.03 – 2000.03) | ||
| Honda | Civic | 1996.05-1999.04 | Gen. VI | 1.6 i (EJ6) | D16Y7 1590 Petrol 79 kW 107 BHP (1996.05 – 1999.04) | ||
| Honda | Civic | 1997.01-2001.02 | Gen. VI | 1.4 LPG | D14Z4 1396 Petrol 66 kW 90 BHP (1997.01 – 2001.02) | ||
| Honda | Civic | 1997.09-1999.12 | Gen. VI | 1.6 (EJ8) | D16Y8 1590 Petrol 87 kW 118 BHP (1997.09 – 1999.12) | ||
| Honda | Civic | 2001.02-2005.09 | Gen. VII | 1.7 | D17A6, D17Z2 1668 Petrol 85 kW 116 BHP (2001.02 – 2005.09) | ||
| Honda | Civic | 2001.02-2005.12 | Gen. VII | 1.6 i (EM1) | D16V1 1590 Petrol 81 kW 110 BHP (2001.02 – 2005.12) | ||
| Honda | Civic | 2001.05-2005.12 | Gen. VII | 1.7 i (EM2) | D17A8 1668 Petrol 88 kW 120 BHP (2001.05 – 2005.12) | ||
| Honda | Civic | 2001.05-2005.12 | Gen. VII | 1.7 i VTEC (EM2) | D17A5, D17A9 1668 Petrol 92 kW 125 BHP (2001.05 – 2005.12) | ||
| Honda | FR-V | 2004.08-2009 | 1.7 (BE1) | D17A2 1668 Petrol 92 kW 125 BHP (2004.08 – 2009) | ||
| Honda | HR-V | 1999.03- | 1.6 16V (GH1. GH3) | D16W1 1590 Petrol 77 kW 105 BHP (1999.03 -) | ||
| Honda | HR-V | 1999.03- | 1.6 16V 4WD (GH2. GH4) | D16W1 1590 Petrol 77 kW 105 BHP (1999.03 -) | ||
| Honda | HR-V | 1999.10-2005.09 | 1.6 16V 4WD (GH2. GH4) | D16W5 1590 Petrol 91 kW 124 BHP (1999.10 – 2005.09) | ||
| Honda | Integra | 1993.09-2001.08 | 1.6 (DB6) | ZC1 1590 Petrol 88 kW 120 BHP (1993.09 – 2001.08) | Suits vehicles manufactured until 09/1996. | |
| Honda | Integra | 1993.09-2001.08 | 1.6 4WD (DB9) | ZC1 1590 Petrol 88 kW 120 BHP (1993.09 – 2001.08) | Suits vehicles manufactured until 09/1996. |
