IA23 ontstekingsmodule

 580,80  480,00 ex. BTW

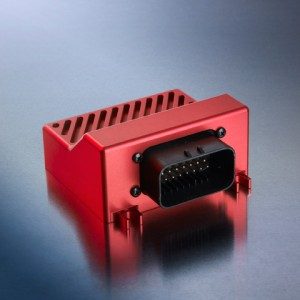

The KMS IA23 is a stand-alone management system for controlling the ignition system of any Otto engine up to 8 cylinders. The KMS IA23 is highly suitable for all applications where injection systems for some reason cannot be used or are not allowed. It can also be used in combination with the original management system to take over the control of the ignition system, for example to raise the RPM limit or to apply launch control or powershift.


  • Ignition system up to 8 cylinders (8 cylinders distributor only)
  • Compact and robust design
  • Power shift / Launch-control
  • Shiftlight
  • This system can be used on coils with or without internal drivers
  • Hall or inductive input
  • Connector with gold plated pins
  • Water resistant
  • Shortcut protected outputs
  • Serial RS232 communication
  • External dashboard (KMS CAN display in combination with interface)

The KMS IA23 ECU is supplied including breakout loom, communication cable, software and wiring instructions.
