VALVE SPRING KIT for Honda D14-D16A6-D15B2

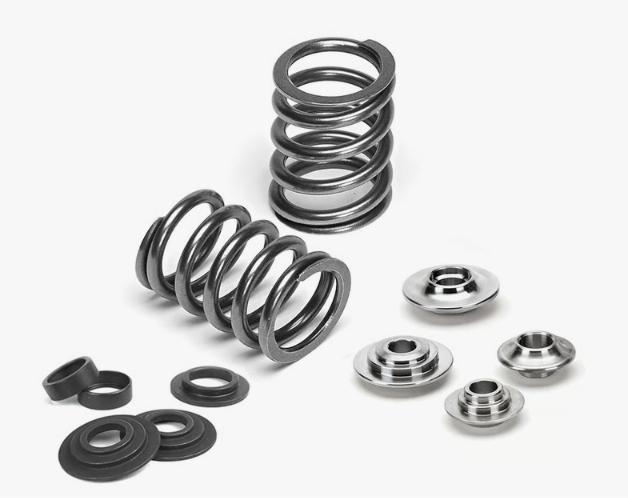

The Supertech valve spring kit for the Honda D16A6 is a complete, matched valvetrain package — springs and spring seat locators — engineered to work together so installation is straightforward and clearance issues are eliminated.
The single valve spring set is built from premium Superclean spring steel to control valve motion at high RPM, reduce valve float and support aggressive cam profiles in the Honda D16A6, and is matched with titanium retainers.
KEY FEATURES
- Single Valve Spring design
- Seat pressure: 73lbs @ 40.60mm
- Open pressure: 192lbs @ 12.00mm
- Spring rate: 9.90lbs/mm
- Max lift: 13.30mm
- Safe RPM: 8000
- Titanium retainers included
- Complete matched kit for the Honda D16A6
APPLICATIONS
Recommended for any Honda D16A6 build running aggressive cams, increased RPM ceilings or forced induction. Verify installed spring height and confirm retainer-to-seal clearance during assembly.
Technical Specifications
single — single — seat-h1003e — Verified for Honda D16A6Construction
Seat Locator Qty
8
Kit Spring
spr-h1003s
Kit Spring Qty
16
Safe Rpm Limit
8000
Inner Spring Od
single
Inner Spring Id
single
Seat Locator
seat-h1003e
Retainer Qty
16
Outer Spring Od
23.70mm
Outer Spring Id
16.30mm
Seat Pressure
73lbs @ 40.60mm
Open Pressure
192lbs @ 12.00mm
Max Lift
13.30mm
Coil Bind
27.30mm
Rate
9.90lbs/mm
Retainer
Titanium
